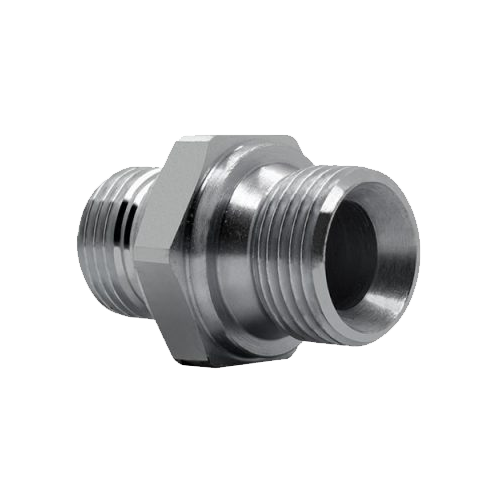

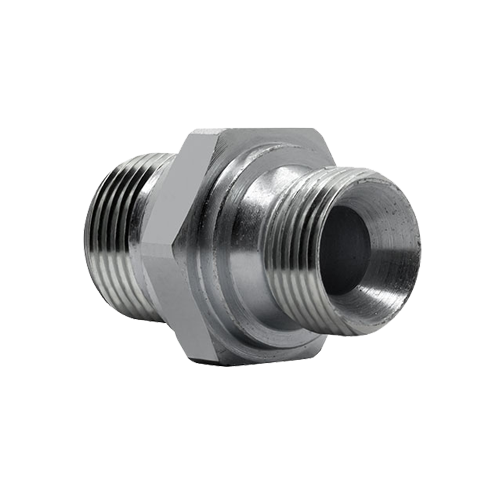

O Adaptador Reto Macho BSPP JC de padrão BSI 5200
Utilizado em sistemas hidráulicos de alta pressão
Na família de adaptadores BSI estão nossos adaptadores hidráulicos NPTF e adaptadores hidráulicos BSPP ou BSPT. Há também adaptadores BSI que combinam extremidades com outras roscas, como ORFS ou SAE, por exemplo.

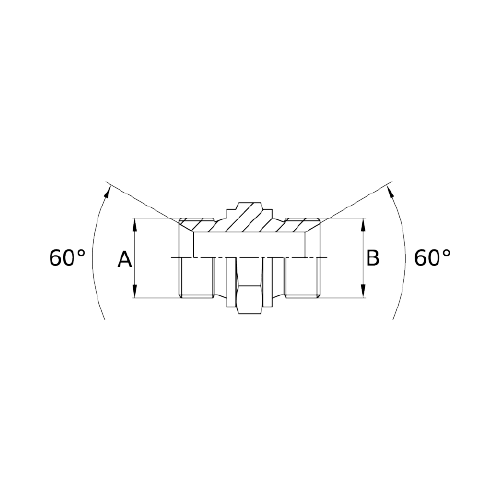

| Série | Bar | Ref. Comercial | A | B | Código Interno |
|
Universal
|
400
|
IMBMB-02-02 | 1/8″-28 | 1/8″-28 | XX1311111X-02-02 |
| IMBMB-04-02 | 1/4″-19 | 1/8″-28 | XX1311111X-04-02 | ||
| IMBMB-06-02 | 3/8″-19 | 1/8″-28 | XX1311111X-06-02 | ||
| IMBMB-04-04 | 1/4″-19 | 1/4″-19 | XX1311111X-04-04 | ||
| IMBMB-06-04 | 3/8″-19 | 1/4″-19 | XX1311111X-06-04 | ||
| 350 | IMBMB-08-04 | 1/2″-14 | 1/4″-19 | XX1311111X-08-04 | |
| 315 | IMBMB-12-04 | 3/4″-14 | 1/4″-19 | XX1311111X-12-04 | |
| 400 | IMBMB-06-06 | 3/8″-19 | 3/8″-19 | XX1311111X-06-06 | |
| 350 | IMBMB-08-06 | 1/2″-14 | 3/8″-19 | XX1311111X-08-06 | |
| 315 | IMBMB-12-06 | 3/4″-14 | 3/8″-19 | XX1311111X-12-06 | |
|
350
|
IMBMB-08-08 | 1/2″-14 | 1/2″-14 | XX1311111X-08-08 | |
| IMBMB-10-08 | 5/8″-14 | 1/2″-14 | XX1311111X-10-08 | ||
| 315 | IMBMB-12-08 | 3/4″-14 | 1/2″-14 | XX1311111X-12-08 | |
| 250 | IMBMB-16-08 | 1″-11 | 1/2″-14 | XX1311111X-16-08 | |
| 200 | IMBMB-20-08 | 1.1/4″-11 | 1/2″-14 | XX1311111X-20-08 | |
| 350 | IMBMB-10-10 | 5/8″-11 | 5/8″-14 | XX1311111X-10-10 | |
|
315
|
IMBMB-12-10 | 3/4″-14 | 5/8″-14 | XX1311111X-12-10 | |
| IMBMB-12-12 | 3/4″-14 | 3/4″-14 | XX1311111X-12-12 | ||
| 250 | IMBMB-16-12 | 1″-11 | 3/4″-14 | XX1311111X-16-12 | |
| 200 | IMBMB-20-12 | 1.1/4″-11 | 3/4″-14 | XX1311111X-20-12 | |
| 160 | IMBMB-24-12 | 1.1/2″-11 | 3/4″-14 | XX1311111X-24-12 | |
| 250 | IMBMB-16-16 | 1″-11 | 1″-11 | XX1311111X-16-16 | |
| 200 | IMBMB-20-16 | 1.1/4″-11 | 1″-11 | XX1311111X-20-16 | |
| 100 | IMBMB-24-16 | 1.1/2″-11 | 1″-11 | XX1311111X-24-16 | |
| 125 | IMBMB-32-16 | 2″-11 | 1″-11 | XX1311111X-32-16 | |
| 200 | IMBMB-20-20 | 1.1/4″-11 | 1.1/4″-11 | XX1311111X-20-20 | |
| 160 | IMBMB-24-20 | 1.1/2″-11 | 1.1/4″-11 | XX1311111X-24-20 | |
| 125 | IMBMB-32-20 | 2″-11 | 1.1/4″-11 | XX1311111X-32-20 | |
| 160 | IMBMB-24-24 | 1.1/2″-11 | 1.1/2″-11 | XX1311111X-24-24 | |
|
125
|
IMBMB-32-24 | 2″-11 | 1.1/2″-11 | XX1311111X-32-24 | |
| IMBMB-32-32 | 2″-11 | 2″-11 | XX1311111X-32-32 | ||
|
350
|
IMBMB-08-02 | 1/2″-14 | 1/8″-28 | XX1311111X-08-02 | |
| IMBMB-10-04 | 5/8-14 | 1/4-19 | XX1311111X-10-04 | ||
| 250 | IMBMB-16-04 | 1-11 | 1/4-19 | XX1311111X-16-04 | |
| 350 | IMBMB-10-06 | 5/8-14 | 3/8-19 | XX1311111X-10-06 | |
| 250 | IMBMB-16-06 | 1-11 | 3/8-19 | XX1311111X-16-06 | |
| 160 | IMBMB-16-10 | 1-11 | 5/8-14 | XX1311111X-16-10 | |
| 200 | IMBMB-20-10 | 1.1/4-11 | 5/8-14 | XX1311111X-20-10 |
