Conector Instantâneo Pneumático PB-R

Cód. Kiko-Flex

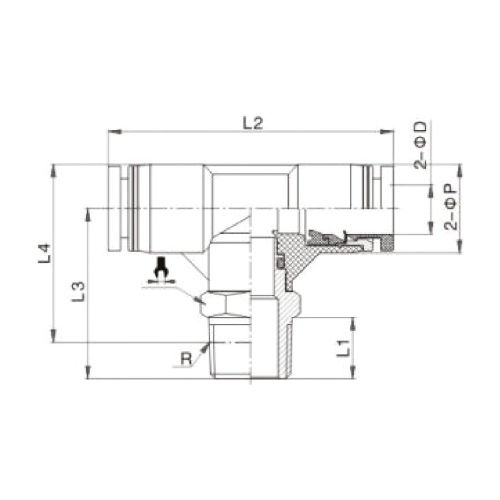

Modelo

Ø D

R

L1

L2

L3

L4

Ø P

11670169/0405

PB4-M5

4

M5

3.5

37

18.5

20.5

11

12

11670169/0406

PB4-M6

M6

4

37

19

20.5

11

12

11670168/0402

PB4-01

R1/8

7.5

37

21

22.5

11

12

Sob Consulta

PB4-02

R1/4

10

37

24

23.5

11

14

Sob Consulta

PB4-03

R3/8

10.5

37

25

24

11

17

11670169/0605

PB6-M5

6

M5

3.5

39

19.5

22.5

13

12

Sob Consulta

PB6-M6

M6

4

39

20

22.5

13

12

11670168/0602

PB6-01

R1/8

7.5

39

22

24.5

13

12

11670168/0604

PB6-02

R1/4

10

39

25

25.5

13

14

Sob Consulta

PB6-03

R3/8

10.5

39

26

26

13

17

Sob Consulta

PB6-04

R1/2

13.5

39

29.5

27.5

13

21

11670168/0802

PB8-01

8

R1/8

7.5

46

25

28.5

14.5

14

11670168/0804

PB8-02

R1/4

10

46

27.5

29

14.5

14

Sob Consulta

PB8-03

R3/8

10.5

46

28.5

29

14.5

17

Sob Consulta

PB8-04

R1/2

13.5

46

32

31

14.5

21

Sob Consulta

PB10-01

10

R1/8

7.5

54.5

27.5

32.5

18.5

17

11670168/1004

PB10-02

R1/4

10

54.5

30

33

18.5

17

11670168/1006

PB10-03

R3/8

10.5

54.5

30.5

33

18.5

17

11670168/1008

PB10-04

R1/2

13.5

54.5

34

35

18.5

21

Sob Consulta

PB12-01

12

R1/8

7.5

59

28

34.5

21

17

11670168/1204

PB12-02

R1/4

10

59

30.5

35

21

17

11670168/1206

PB12-03

R3/8

10.5

59

31

35

21

17

Sob Consulta

PB12-04

R1/2

13.5

59

34.5

36.5

21

21

Sob Consulta

PB14-03

14

R3/8

11

61

37

42

23

19

Sob Consulta

PB14-04

R1/2

14

61

40.5

43.5

23

21

Sob Consulta

PB16-03

16

R3/8

11

62

42.5

49

26

21

Sob Consulta

PB16-04

R1/2

14

62

45.5

50

26

21
