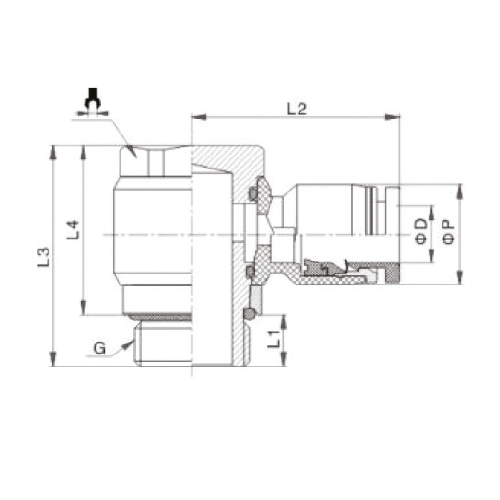

Conector Instantâneo Pneumático PH-G

Cód. Kiko-Flex

Modelo

Ø D

G

L1

L2

L3

L4

Ø P

11670153/0402

PH4-G01

4

G1/8

5

23

23.5

18.5

11

12

Sob Consulta

PH4-G02

G1/4

7

25

27

20

11

14

11670153/0602

PH6-G01

6

G1/4

5

23

23.5

18.5

13

12

11670153/0604

PH6-G02

G1/4

7

25

27

20

13

14

Sob Consulta

PH6-G03

G3/8

7.5

27

32

24.5

13

19

Sob Consulta

PH6-G04

G1/2

10

33

39

29

14.5

24

11670153/0802

PH8-G01

8

G1/4

5

26.5

23.5

18.5

14.5

12

Sob Consulta

PH8-G02

G1/4

7

29

27

20

14.5

14

Sob Consulta

PH8-G03

G3/8

7.5

30.5

32

24.5

14.5

19

Sob Consulta

PH8-G04

G1/2

10

33

39

29

14.5

24

Sob Consulta

PH10-G01

10

G1/4

5

29

23.5

18.5

18.5

12

Sob Consulta

PH10-G02

G1/4

7

31

27

20

18.5

14

Sob Consulta

PH10-G03

G3/8

7.5

32

32

24.5

18.5

19

Sob Consulta

PH10-G04

G1/2

10

34.5

39

29

18.5

24

Sob Consulta

PH12-G02

12

G1/4

7

33

27

20

21

14

Sob Consulta

PH12-G03

G3/8

7.5

35

32

24.5

21

19

Sob Consulta

PH12-G04

G1/2

10

36.5

39

29

21

24

Sob Consulta

PH14-G04

14

G1/2

10

39

39

29

26

24

Sob Consulta

PH16-G04

16

G1/2

10

39

39

29

26

24
