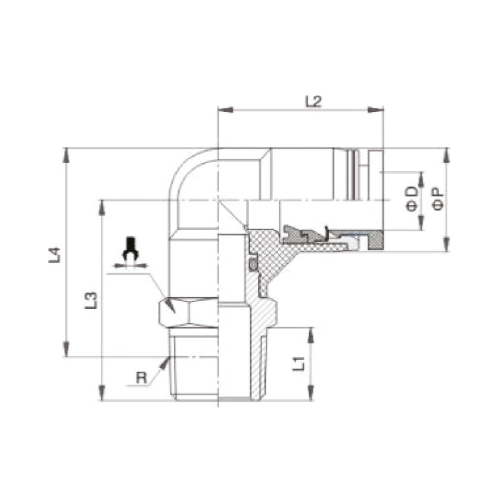

Conector Instantâneo Pneumático PL-R

Cód. Kiko-Flex

Modelo

Ø D

R

L1

L2

L3

L4

Ø P

11670157/0405

PL4-M5

4

M5

3.5

18.5

18.5

20.5

11

12

11670157/0406

PL4-M6

M6

4

18.5

19

20.5

11

12

Sob Consulta

PL4-0.5

0.5

7

18.5

20.5

22

11

12

11670156/0402

PL4-01

R1/8

7.5

18.5

21

22.5

11

12

11670156/0404

PL4-02

R1/4

10

18.5

24

23.5

11

14

Sob Consulta

PL4-03

R3/8

10.5

18.5

25

24

11

17

Sob Consulta

PL4-M5-II

4

M5

3.5

18.5

18.5

20.5

11

10

Sob Consulta

PL4-M6-II

M6

4

18.5

19

20.5

11

10

Sob Consulta

PL4-01-II

R1/8

7.5

18.5

21

22.5

11

10

Sob Consulta

PL4-M3-III

4

M3

3

17

16.5

19

11

8

Sob Consulta

PL4-M5-III

M5

3.5

17

17

19

11

8

Sob Consulta

PL4-M6-III

M6

4

17

17.5

19

11

8

11670157/0605

PL6-M5

6

M5

3.5

19.5

19.5

22.5

13

12

Sob Consulta

PL6-M6

M6

4

19.5

20

22.5

13

12

Sob Consulta

PL6-0.5

R1/16

7

19.5

21.5

24

13

12

11670156/0602

PL6-01

R1/8

7.5

19.5

22

24.5

13

12

11670156/0604

PL6-02

R1/4

10

19.5

25

25.5

13

14

11670156/0606

PL6-03

R3/8

10.5

19.5

26

26

13

17

11670156/0608

PL6-04

R1/2

13.5

19.5

29.5

27.5

13

21

Sob Consulta

PL6-M3-III

6

M3

3

17.5

17.5

21

13

8

Sob Consulta

PL6-M5-III

M5

3.5

17.5

18

21

13

8

Sob Consulta

PL6-M6-III

M6

4

17.5

18.5

21

13

8

Sob Consulta

PL8-0.5

8

R1/16

7

23

24.5

27.5

14.5

14

11670156/0802

PL8-01

R1/8

7.5

23

25

28.5

14.5

14

11670156/0804

PL8-02

R1/4

10

23

27.5

29

14.5

14

11670156/0806

PL8-03

R3/8

10.5

23

28.5

29

14.5

17

11670156/0808

PL8-04

R1/2

13.5

23

32

31

14.5

21

11670156/1002

PL10-01

10

R1/8

7.5

27

27.5

32.5

18.5

17

11670156/1004

PL10-02

R1/4

10

27

30

33

18.5

17

11670156/1006

PL10-03

R3/8

10.5

27

30.5

33

18.5

17

11670156/1008

PL10-04

R1/2

13.5

27

34

35

18.5

21

Sob Consulta

PL10-06

R3/4

15

27

36.5

36

18.5

27

Sob Consulta

PL12-01

12

R1/8

7.5

29.5

28

34.5

21

17

11670156/1204

PL12-02

R1/4

10

29.5

30.5

35

21

17

11670156/1206

PL12-03

R3/8

10.5

29.5

31

35

21

17

11670156/1208

PL12-04

R1/2

13.5

29.5

34.5

36.5

21

21

Sob Consulta

PL12-06

R3/4

15

29.5

37

38

21

27

Sob Consulta

PL14-02

14

R1/4

10

30

35.5

41

23

19

11670156/1406

PL14-03

R3/8

11

30

37.5

43

23

19

Sob Consulta

PL14-04

R1/2

14

30

40

43

23

21

Sob Consulta

PL14-06

R3/4

15

30

42

44

23

27

Sob Consulta

PL16-02

16

R1/4

10

31.5

36.5

43.5

26

21

11670156/1606

PL16-03

R3/8

11

31.5

39

45

26

21

11670156/1608

PL16-04

R1/2

14

31.5

41.5

46

26

21

Sob Consulta

PL16-06

R3/4

15

31.5

43.5

47

26

27
