Terminal tipo olhal para parafuso BSPP
Os terminais padrão banjo, são fundamentais na montagem de mangueiras hidráulicas em geral, eles têm a função de ligação do conjunto montado (mangueira) com o bloco ou bomba hidráulica, fazendo assim a ligação e transferência de fluido hidráulico.

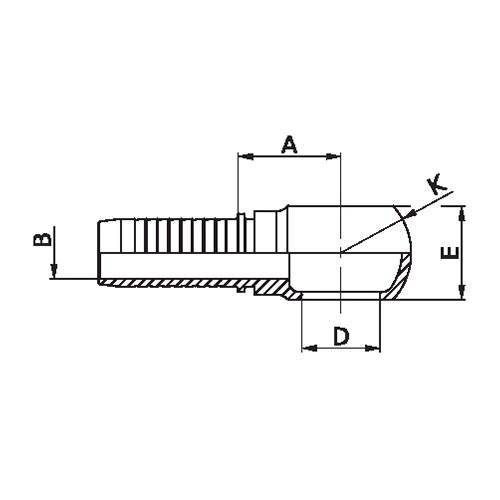

| Ø | Medidas mm. | Olhal (BSPP) | Ref. Comercial |
Código Interno | |||||
| pol. | bitola | B | A | D | E | K | |||
| 1/4” | -4 | 4,4 | 22,0 | 13,25 | 15,0 | 24,0 | 1/4″-19 | 100BB-04-04 | XX020021X-04-04 |
| 1/4” | -4 | 4,4 | 23,5 | 16,7 | 18,0 | 28,0 | 3/8″-19 | 100BB-06-04 | XX020021X-06-04 |
| 5/16” | -5 | 5,0 | 23,0 | 13,2 | 14,0 | 24,0 | 1/4″-19 | 100BB-04-05 | XX020021X-04-05 |
| 5/16″ | -5 | 5,6 | 23,0 | 16,7 | 20,0 | 29,0 | 3/8″-19 | 100BB-06-05 | XX020021X-06-05 |
| 3/8” | -6 | 7,0 | 24,5 | 16,7 | 20,0 | 29,0 | 3/8″-19 | 100BB-06-06 | XX020021X-06-06 |
| 3/8” | -6 | 7,1 | 27,0 | 21,0 | 25,0 | 38,0 | 1/2″-19 | 100BB-08-06 | XX020021X-08-06 |
| 1/2” | -8 | 9,8 | 27,5 | 21,0 | 25,0 | 38,0 | 1/2″-14 | 100BB-08-08 | XX020021X-08-08 |
| 5/8″ | -10 | 12,7 | 29,5 | 23,0 | 27,0 | 40,0 | 5/8″-14 | 100BB-10-10 | XX020021X-10-10 |
| 3/4″ | -12 | 15,5 | 36,5 | 26,5 | 31,0 | 48,0 | 3/4″-14 | 100BB-12-12 | XX020021X-12-12 |
| 1″ | -16 | 20,5 | 40,5 | 33,3 | 42,0 | 60,0 | 1″-11 | 100BB-16-16 | XX020021X-16-16 |
