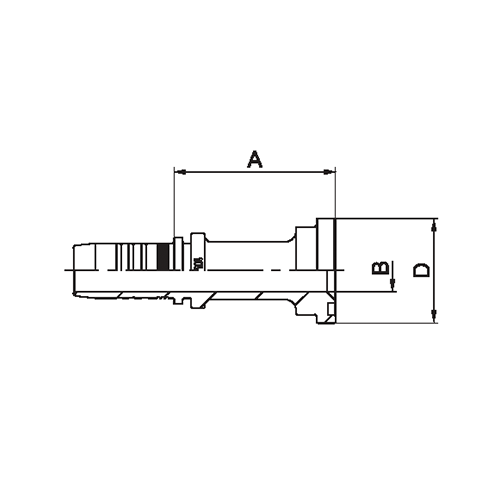

| Ø | Medidas mm. | Flange | Ref. Comercial |
Código Interno | |||
| pol. | bitola | B | A | D | |||
| 1/2” | -8 | 9,3 | 51 | 30,3 | 1/2” | 100F3-08-08 | XX020611X-08-08 |
| 1/2” | -8 | 15,1 | 58 | 38 | 3/4” | 100F3-12-08 | XX020611X-12-08 |
| 5/8” | -10 | 9,3 | 51 | 30,3 | 1/2” | 100F3-08-10 | XX020611X-08-10 |
| 5/8” | -10 | 15 | 65,5 | 38 | 3/4” | 100F3-12-10 | XX020611X-12-10 |
| 5/8” | -10 | 32 | 69,5 | 60,5 | 1.1/2” | Sob consulta | Sob consulta |
| 3/4” | -12 | 15 | 58 | 38 | 3/4” | 100F3-12-12 | XX020611X-12-12 |
| 3/4” | -12 | 20 | 58 | 44,6 | 1” | 100F3-16-12 | XX020611X-16-12 |
| 3/4” | -12 | 26 | 69,5 | 51 | 1.1/4” | 100F3-20-12 | XX020611X-20-12 |
| 1” | -16 | 15 | 60,5 | 38 | 3/4” | 100F3-12-16 | XX020611X-12-16 |
| 1” | -16 | 19,8 | 64,5 | 44,6 | 1” | 100F3-16-16 | XX020611X-16-16 |
| 1” | -16 | 26 | 70,5 | 51 | 1.1/4” | 100F3-20-16 | XX020611X-20-16 |
| 1.1/4” | -20 | 15 | 61 | 38 | 3/4” | Sob consulta | Sob consulta |
| 1.1/4” | -20 | 19,8 | 64,5 | 44,6 | 1” | 100F3-16-20 | XX020611X-16-20 |
| 1.1/4” | -20 | 26 | 70,5 | 51 | 1.1/4” | 100F3-20-20 | XX020611X-20-20 |
| 1.1/4” | -20 | 32 | 72,5 | 60,5 | 1.1/2” | 100F3-24-20 | XX020611X-24-20 |
| 1.1/4” | -20 | 42 | 75,5 | 71,6 | 2” | 100F3-32-20 | XX020611X-32-20 |
| 1.1/2” | -24 | 32 | 75,5 | 60,5 | 1.1/2” | 100F3-24-24 | XX020611X-24-24 |
| 1.1/2” | -24 | 42 | 75,5 | 71,6 | 2” | 100F3-32-24 | XX020611X-32-24 |
| 2” | -32 | 42 | 79 | 71,6 | 2” | 100F3-32-32 | XX020611X-32-32 |
| 2” | -32 | 56 | 81 | 84,3 | 2.1/2” | 100F3-40-32 | XX020611X-40-32 |
| 2.3/8” | -38 | 50,5 | 84 | 84,3 | 2.1/2” | 100F3-40-38 | XX020611X-40-38 |
| 2.1/2” | -40 | 42 | 78,5 | 71,6 | 2” | 100F3-32-40 | XX020611X-32-40 |
| 2.1/2” | -40 | 55,4 | 84 | 84,3 | 2.1/2” | 100F3-40-40 | XX020611X-40-40 |
| 2.1/2” | -40 | 68,9 | 79 | 101,6 | 3” | 100F3-48-40 | XX020611X-48-40 |
| 2.1/2” | -40 | 79 | 90,5 | 114,3 | 3.1/2” | 100F3-56-40 | XX020611X-56-40 |
| 2.1/2” | -40 | 90 | 96,5 | 127 | 4” | 100F3-64-40 | XX020611X-64-40 |
